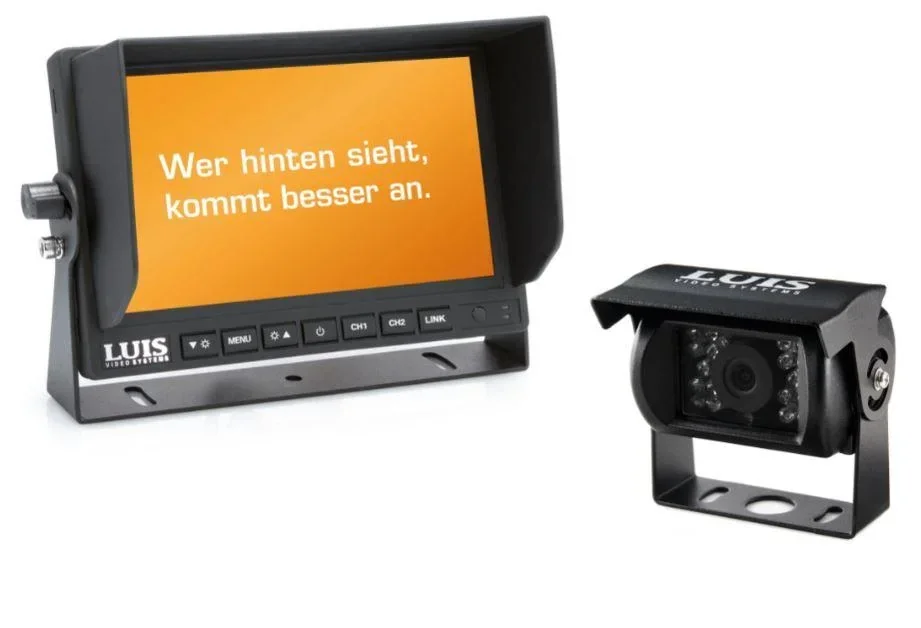

7" System Basic Camera - black

The powerful LUIS entry-level system with an outstanding price-performance ratio.

The powerful LUIS entry-level system with the high-resolution LUIS Basic Camera, in an IP68 protective housing and 12-24 volts, and the proven LUIS 7" Basic Monitor, was developed especially for use on commercial vehicles and mobile homes.

The LUIS Basic Camera features high-resolution 600 TV lines, an IP68 protective housing, a 12-24 volt input voltage, and powerful night vision.

The advanced and proven LUIS night vision technology enables visibility up to 10 meters in total darkness (0 lux). For this purpose, the reversing camera automatically switches on its powerful 18 infrared night vision LEDs.

Due to the wide range of voltage supplies from 12 to 24 volts, the LUIS Basic Camera can be used without additional Voltage converters can be installed on light commercial vehicles and mobile homes, as well as heavy commercial vehicles and machinery. The camera's robust and particularly waterproof design achieves protection class IP68.

The LUIS 7" Monitor Basic has two camera inputs and can therefore display a second camera, such as a LUIS side view camera, in addition to the LUIS Camera Basic.

In addition, the LUIS 7" Monitor Basic has a surface treatment to reduce glare, ensuring it can also be used in direct sunlight.

Naturally, all components of the LUIS 7" System Basic undergo our comprehensive and strict quality assurance processes with 100% routine testing in all essential production steps.

You also receive the usual 48-month warranty with this LUIS product.

Technical specifications:

Camera

• High-quality Pixelplus 1/3 CMOS sensor of the latest generation
• High-resolution 600 TV lines
• Viewing angle of 105° (diagonal)
• High light sensitivity of 0.1 lux (0 lux with IR LED on)
• IR LEDs for powerful night vision up to 10 m
• Automatic white balance
• Automatic backlight compensation
• Usable from approx. -30°C to +70°C
• Waterproof IP68
• Operating voltage 12-24 volts DC
• Camera dimensions (W x H x D): 72 x 85 x 81 mm, weight: 280 g, weight with 20 m cable: 955 g

Monitor

• LUIS 7" TFT display
• Display size: 7" screen diagonal (approx. 18 cm)
• Display resolution: 800 x 480 pixels
• High-quality A+ panel
• Brightness of 350 cd/m²
• 2 camera inputs for image display on 2 channels (no split screen)
• 1 trigger line
• Monitor switches on automatically when connected to reverse gear
• Mirror function horizontally and vertically
• Menu language: German, English, Italian
• Including monitor mount
• Including on-board power cable for 12 - 24 volts
• Current consumption at 12 V / 24 volts max. 350 / 140 mA (monitor only)
• Monitor dimensions (W x H x D): 215 x 135 x 77 mm, weight: 610 g

Scope of delivery

• LUIS 7" Monitor Basic
• LUIS Camera Basic
• 20 meter connection cable
• Mounting material
• Stand
• Remote control
• Instructions
