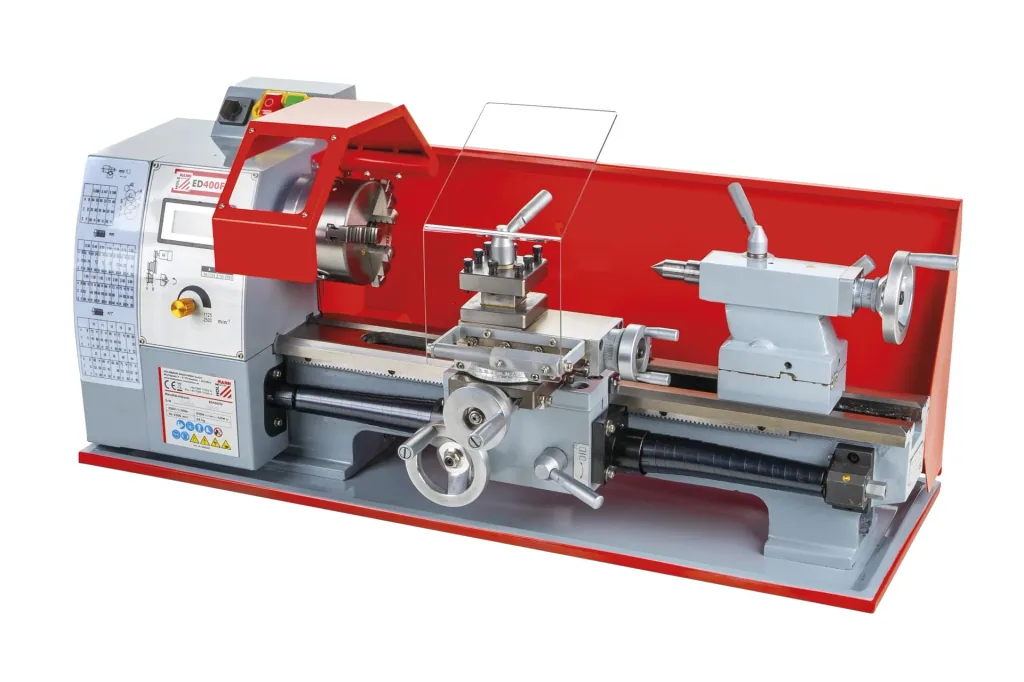

Table lathe ED 400FD
Paiement 100% sécurisé
| Référence article | WF-848227 |
| Marque | Holzmann |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- With lead screw for thread cutting or automatic longitudinal turning
- V-shaped bed guides induction hardened and precision ground
- Hardened main spindle mounted in adjustable, precise tapered roller bearings
- High concentricity of the main spindle (< 0.009 mm)
- Speed continuously variable, conveniently readable via digital speed display
- Change gears supplied as standard for a large thread cutting range
- V-shaped guides of the slide guide can be adjusted for play
- Powerful, maintenance-free motor with undervoltage release
- Extremely powerful, largely constant torque curve
- Right-left rotation can be switched on the control panel
- Tailstock can be moved for taper turning
- This product corresponds to filter class B and must be used in mixed or mixed water. Residential areas must be protected in accordance with EMC
Technical data
- Max. swing diameter over machine bed: 210 mm
- Max. Swing diameter over cross slide: 110 mm
- Machine bed width: 100 mm
- Spindle speed range: 50-2500 rpm
- Thickness of the turning tool is 10 mm
- Travel of longitudinal slide: 290 mm
- Tailstock mount: Mk2/MT2
- Tailstock quill travel: 55 mm
- Metric threads (18 steps): 0.5 - 3 mm
- Inch threads (8 steps): 8 - 44 TPI
- Motor power S1 (100%) / S6: 0.45 kW / 0.63 kW
- Dimensions L x W x H: 950 x 390 x 350 mm
Scope of delivery
- 3-jaw chuck Ø 100 mm
- Quadruple tool holder
- Fixed center punch MK3
- Fixed center punch MK2
- Chip back plate
- Chip tray
- Set of change gears
- Operating tools
| Distance between centers | |
|---|---|
| Distance between centers | 400 mm |
| Spindle bore | |
| Spindle bore | 21 mm |
| Voltage | |
| Voltage | 230 volts |
| Top slide travel | |
| Top slide travel | 85 mm |
| Power output | |
| Power output | 600 watts |
| Idle speed | |
| Idle speed | 50-2500 rpm |
| Weight | |
| Weight | 65 kg |
| Tailstock mount | |
| Tailstock mount | 3 MK |
| Cross travel | |
| Cross travel | 80 mm |
