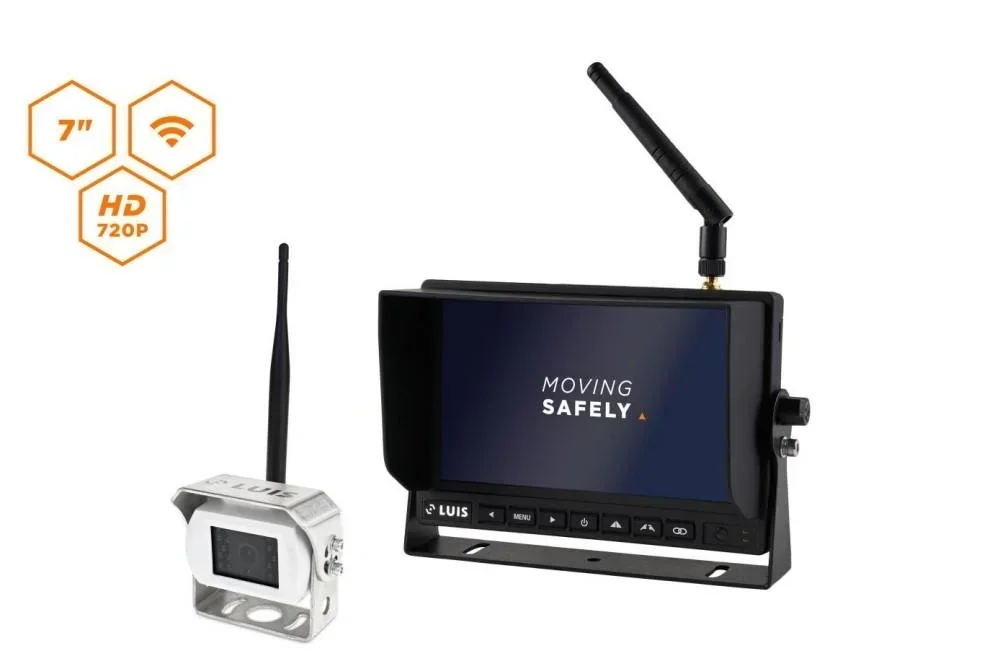

Digital-Funkkamerasystem 720P

• Range up to 200 m (open field)
• Robust and waterproof camera housing (IP69K protection class)
• LED night vision technology from LUIS
• Up to 3 additional wireless cameras can be connected
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• 12-24 V, DC
• Certificate: E-Mark, RoHS

Camera:

Optical specifications:

• Resolution: 1280 x 720 pixels
• Sensor: CMOS
• Video format: PAL
• Vertical viewing angle: 76°
• Horizontal viewing angle: 95°
• Night vision: Night vision with infrared support
• Mirror function: Yes
• Microphone: No

Mechanical specifications:

• Housing: Gray / aluminum alloy
• Mounting / bezel: Silver / stainless steel
• Weight: 400g (including accessories: 500g)
• Connector: Radio
• Dimensions (L x W x H): 74 x 45.5 x 56.5 mm
• Cable length: 0.5 m
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Protection class: IP69k
• Shock resistance: 4 g

Electrical Specifications:

• Voltage: 12-24 V, DC
• Max. current consumption: 180 mA/ 12 V

Monitor:

Display specifications:

• Size: 7 inches (approx. 18 cm)
• Resolution: 1280 x 720 pixels
• Brightness: 500 cd/m2
• Auto-Dim: No

Monitor specifications:

• Housing: Black / ABS
• Video inputs: 4 / wireless
• Trigger: Yes
• Video format: PAL/ NTSC
• Quad and split function: Yes
• Mirror function: Vertical & horizontal
• Touch function: No
• Speaker: No
• Protection class: No
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Shock resistance: 4 g
• Monitor cable length: 0.5 m
• Weight: 600 g (including accessories 800 g)
• Dimensions (L x W x H): 180 x 121 x 24 mm

Electrical specifications:

• Operating voltage: 12-24 V, DC
• Max. Power consumption: 350 mA / 12 V (including cameras)

Dimensions:

• Camera: 74 x 45.5 x 56.5 mm
• Monitor: 180 x 121 x 24 mm

Scope of delivery:

• LUIS Digital Radio Camera 720 P
• LUIS 7" Digital Radio Monitor Professional 720P
• Remote control
• Alternative external antenna
• Connection cable
• Manual
