Fly screen sliding door, anthracite, 120 x 240 cm

• Sturdy aluminum frame with center strut for greater stability
• High-quality, UV-resistant CLEAR fiberglass fabric
• Anthracite fly screen for improved visibility and ventilation
• Circumferential brush seal in the frame to protect against creepy crawlies
• Secure closure of the sliding door thanks to magnets in the corner connector

The Schellenberg insect screen sliding door is a high-quality insect protection solution for sliding window doors. The complete set includes all the components you need for assembly. The frame system made of aluminum profiles and an additional center strut ensure greater stability when opening and closing the door. Sliders in the upper guide rail and ergonomic handles inside and outside make opening and closing the door extremely smooth. A particularly strong, invisible magnet in the corner connectors keeps the door securely closed, and an additional brush seal in the frame protects your home from creepy crawlies.

The surface of the frame profiles has a matte sanded finish and a modern look.

The UV-resistant KLARSICHT fiberglass fabric in anthracite offers better transparency than other fabric types. It is particularly tear- and impact-resistant, does not fray, and allows optimal air flow. If the sliding door is not needed, for example, during the winter months, it can be quickly removed.

The width and height of the insect screen sliding door can be individually adjusted to fit your balcony or patio door. It has an installation depth of 18 mm.

Technical Data

Aluminum profiles

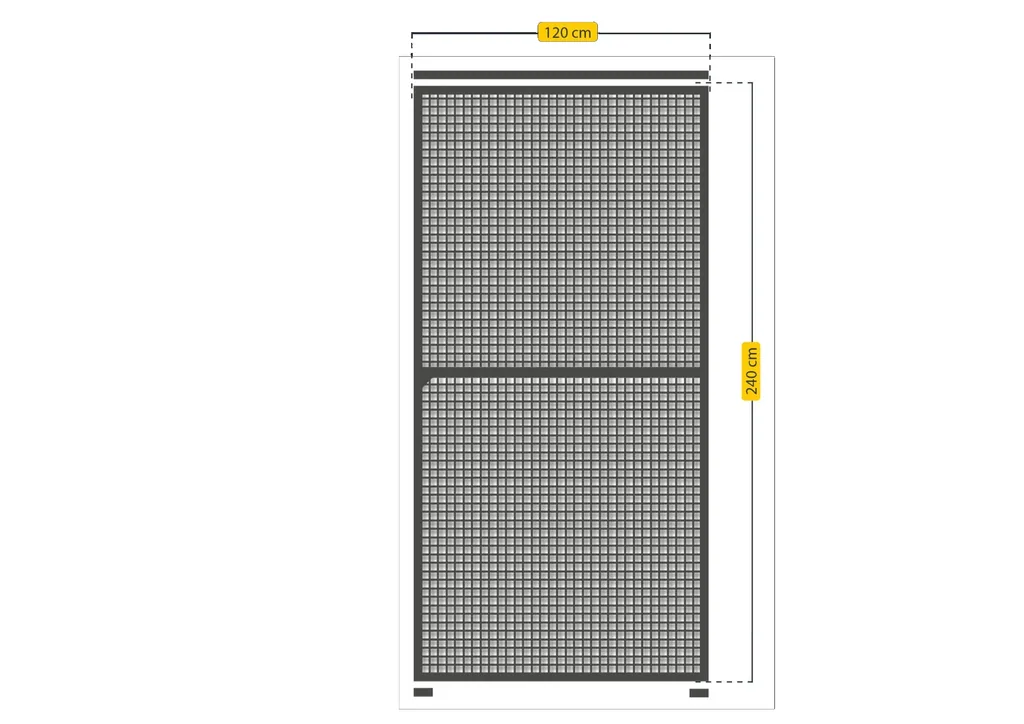

• Dimensions (W x H): 120 x 240 cm
• Color: White or anthracite, depending on selection
• Profile thickness: 30 x 11 mm
• Profile structure: sanded
• Material thickness: 0.95 mm (+0.1/-0.05 mm)
• Material: Aluminum

Insect screen fabric

• Color: Anthracite
• Composition: Fiberglass/PVC
• Mesh density: 18 x 18/inch² = 7 x 7/cm² (+/- 0.4 threads)
• Mesh size 1.18 x 1.18 mm (+/- 5%)
• Thread thickness: .009 = 0.228 mm (+/- 0.013 mm)
• Open area: 70.2%
• Fabric weight: 92 g/m² (+/- 5%)
• Tensile strength: Warp: 489 N; Weft: 489 N (+/- 5%)
• Breaking strength after 480h accelerated weathering: > 55 N/sm²
• Stiffness: 40-60 mg
• Temperature resistance: min. -25°C, max. 100°C
• Fire resistance: self-extinguishing within 10 seconds after removal of the flame source
• Cleaning: washable

Scope of delivery

• 2 x guide rails
• 6 x aluminum frame profiles
• 1 x aluminum center bar profile
• 2 x center bar T-connectors
• 4 x corner connectors
• 4 x corner connector caps
• 6 x U-profile caps for corner connectors
• 1 x fiberglass mesh
• 1 x handle (inside)
• 1 x Handle (outside)
• 8 x impact piping
• 1 x brush seal
• 2 x hinges
• 1 x neodymium magnet
• 2 x magnetic counter plates
• 35 x screws
• 1 x 2 mm metal drill bit
• 1 x Schellenberg cutter knife
• 1 x assembly instructions
