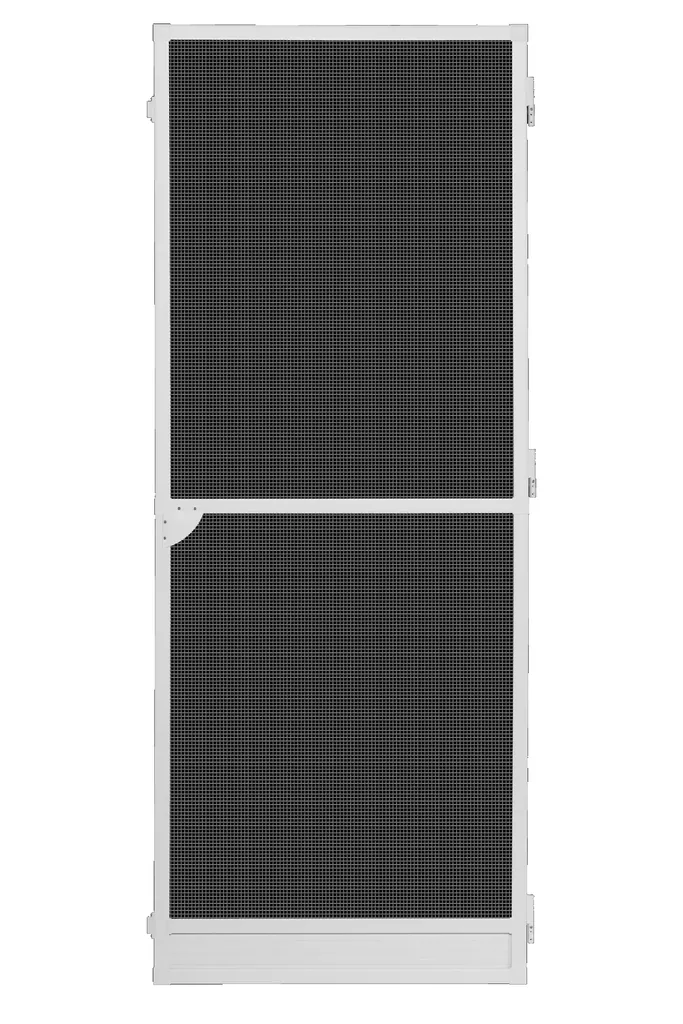

Insect screen door PLUS, color white, 100 x 210 cm

• Durable aluminum frame system
• UV-resistant and tear-resistant insect screen fabric
• Individual size adjustment possible
• Easy installation thanks to the proven frame plug-in system
• Insect screen door can be attached and removed

The Schellenberg insect screen door PLUS keeps spiders, mosquitoes, flies, and other insects out. The complete set consists of an aluminum frame system, high-quality insect screen fabric, and mounting accessories.

The durable aluminum profiles can be individually shortened to the dimensions of your door. The insect screen fabric, made of high-quality fiberglass fabric, is tear-resistant, UV-resistant, and washable. It offers you not only reliable protection but also optimal visibility and air permeability.

The insect screen door is assembled using a proven plug-in system, and the fly screen fabric is pressed into the frame profiles. Then attach the bumper plate, the interior and exterior handles, and the magnetic blocks to the top and bottom of the frame. For additional protection against creepy crawlies, a circumferential brush seal is inserted into the frame of the insect screen door. Finally, the hinges are mounted on the door frame and the insect screen door is inserted.

The insect screen door PLUS is suitable for balcony and patio doors with a maximum size of 100 x 210 cm. If the installation depth of 17 mm is observed, installation behind a roller shutter is possible.

Technical Data

• Dimensions: 100 x 210 cm
• Profile material: aluminum
• Profile thickness: 27 x 9 mm
• Profile structure: sanded, matte
• Installation depth: 17 mm
• Fastening: screw connection
• Fabric color: anthracite
• Fabric material: fiberglass, PVC
• Mesh size: 1.53 x 1.13 mm
• Open area: 67%
• Temperature resistance: -25°C to +120°C
• Fire resistance: self-extinguishing after 10 seconds without flame
• Cleaning: washable

Scope of delivery

• 6 x aluminum frame profiles
• 2 x aluminum center bar profiles
• 1 x aluminum butt plate
• 4 x center bar connectors
• 4 x corner connectors
• 4 x corner connector caps
• 1 x fiberglass mesh
• 1 x handle tab (inside)
• 1 x handle tab (outside)
• 10 x impact piping
• 1 x brush seal
• 3 x hinges
• 2 x magnetic block with metal plate
• 25 x screws
• 1 x metal drill bit, 2 mm
• 1 x cutter knife
• 1 x assembly instructions
