Fendeuse de bûches GHS 1000/14TZ-A

• Solid, torsion-free steel construction
• Two-hand safety operation
• Splitting knife made of special steel with a long service life
• Splitting material catch bracket on both sides
• Highly effective hydraulic pump
• Robust PTO transmission
• Category 1 three-point linkage
• Hydraulic-mechanical log lifter
• Splitting material securing device
• Two speed levels
• Automatic resetting of the splitting wedge with safety shutdown

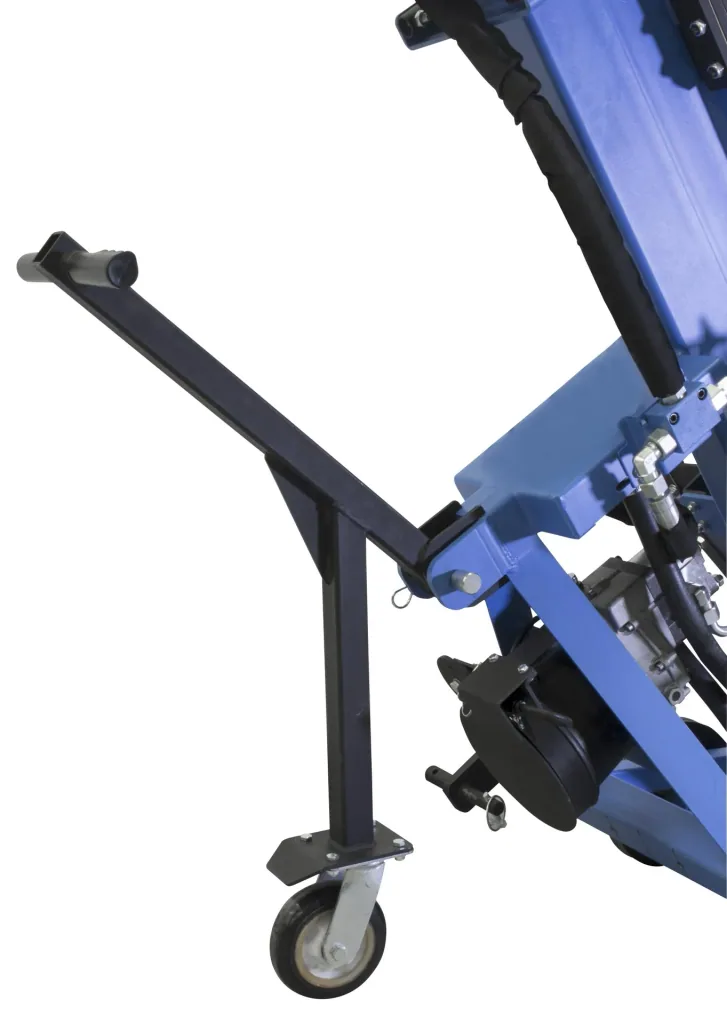

• Plug-in transport drawbar with swivel castor

The GHS 1000/14TZ-A log splitter has been developed according to the latest quality and safety standards. Thanks to its large splitting stroke, the log splitter is ideal for meter-long pieces, especially long-fibered wood. The hydraulic-mechanical log lifter effortlessly positions even heavy logs, ensuring back-friendly and comfortable splitting. The log securing device allows the log to be secured before the splitting process without the hassle of holding it. The long splitting blade is made of partially hardened special steel for a long service life. The three-point linkage and PTO transmission enable mobile use with a tractor in the forest or on polder land. A highly efficient hydraulic pump and a precisely graduated control valve allow the operator to choose between two feed speeds. The automatic reset of the splitting wedge with integrated safety shutdown offers optimal protection and ensures efficient and fatigue-free work. The two-hand safety operation, the on/off switch, and the log catch bar on both sides are further measures for a safe and effective work process. The three-point linkage and the transport drawbar enable effortless transport and maneuvering.

Technical data:

• PTO speed: 540 min-1
• Tractor power: 18/25 kW / HP
• Hydraulic oil quantity: 10 l
• Hydraulic pressure: 245 bar
• Footplate WxD: 420 x 535 mm
• Type of hydraulic oil: HLP46
• Cylinder stroke: 960 mm
• Max. Splitting pressure: 14 t
• Splitting material length: 1000 mm
• Number of forward speeds: 2
• Reverse speed
• PTO: 0.07 m/s
• Forward speed PTO: 0.30 (fast) / 0.057 (slow) m/s
• Max. Splitting material Ø: 430 mm
• Noise level LWA: 97 dB
• Three-point hitch: CAT. 1

Dimensions: L x W x H: 1150 x 1230 x 2500 mm

Weight: 200 kg

Scope of delivery:

• 1 x GHS 1000/14TZ-A log splitter
