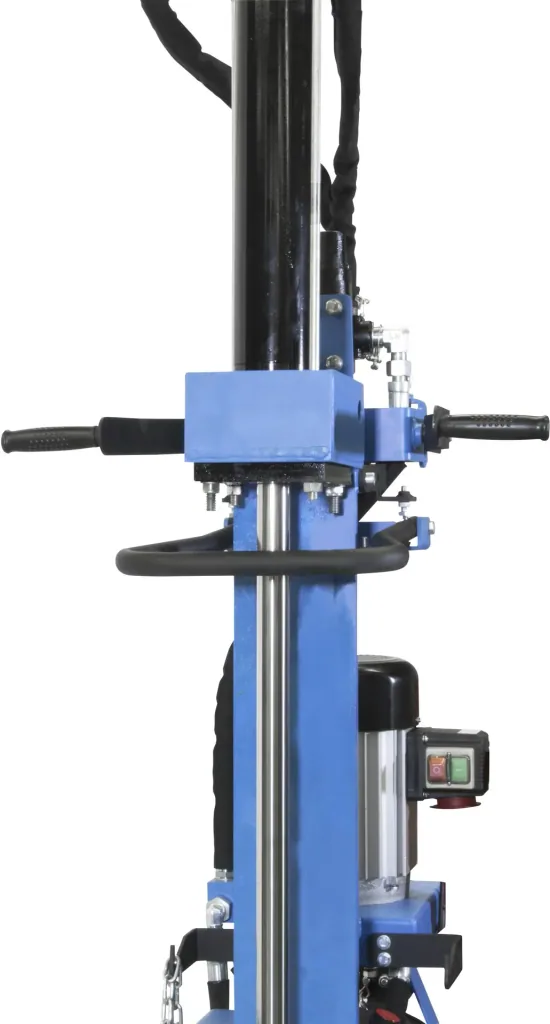

Fendeuse de bois GHS 1000/14TE-A
Paiement 100% sécurisé
| Référence article | WF-981503 |
| Marque | Güde |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- Hydraulic-mechanical log lifter
- Support boom for secure support
- Splitting material securing device
- Splitting knife made of special steel with a long service life
- Powerful electric motor
- Switch-plug combination with phase inverter
- Highly effective hydraulic pump
- 2-hand safety operation
- Splitting material catch on both sides
- Automatic resetting of the splitting wedge with safety shutdown
- Two speed levels
- Plug-in transport drawbar with swivel castor
Technical specifications:
- Mains voltage: 400 V
- Frequency: 50 Hz
- Operating mode: S6 40%
- Protection class: F
- Protection class (IP): IP54
- Motor power (P1): 4.3 kW
- Motor speed: 1420 rpm
- Hydraulic oil quantity: 10 l
- Hydraulic pressure: 245 bar
- Type of hydraulic oil: HLP 46
- Cylinder stroke: 960 mm
- Max. splitting pressure: 14 t
- Splitting length: max. 1000 mm
- Number of forward speeds: 2
- Forward speed: 0.20 fast / 0.038 slow m/s
- Return speed: 0.047 m/s
- Max. Splitting material Ø: 430 mm
- Noise level LWA: 97 dB
Dimensions: L x W x H: 765 x 500 x 2120 mm
Weight: 212 kg
Scope of delivery:
- 1 x log splitter GHS 1000/14TE-A
- 1 x operating instructions
| Voltage | |
|---|---|
| Voltage | 400 |
| IP protection rating | |
| IP protection rating | IP54 |
| Protection class | |
| Protection class | F |
| Return speed | |
| Return speed | 0.047 m/s |
| Forward speed | |
| Forward speed | 0.2 m/s |
| Drive | |
| Drive | Electric |
| Weight | |
| Weight | 212 kg |
| Colors | |
| Colors | Blue |
| Maximum splitting length | |
| Maximum splitting length | 1,000 mm |
| Splitting force (tonnes) | |
| Splitting force (tonnes) | 14 t |
| Maximum splitting diameter | |
| Maximum splitting diameter | 430 mm |
| External dimensions | |
| External dimensions | 765 x 500 x 2,120 mm |
Nom du responsable UE : GÜDE GmbH & Co. KG
Rue du responsable UE: Birkichstrasse
N° de maison du responsable UE : 6
Code postal du responsable UE: 74549
Commune responsable de l'UE: Wolpertshausen
Pays de l'UE responsable : Germany
E-mail du responsable UE: [email protected]
Numéro de téléphone du responsable UE: +49 7904 700-0

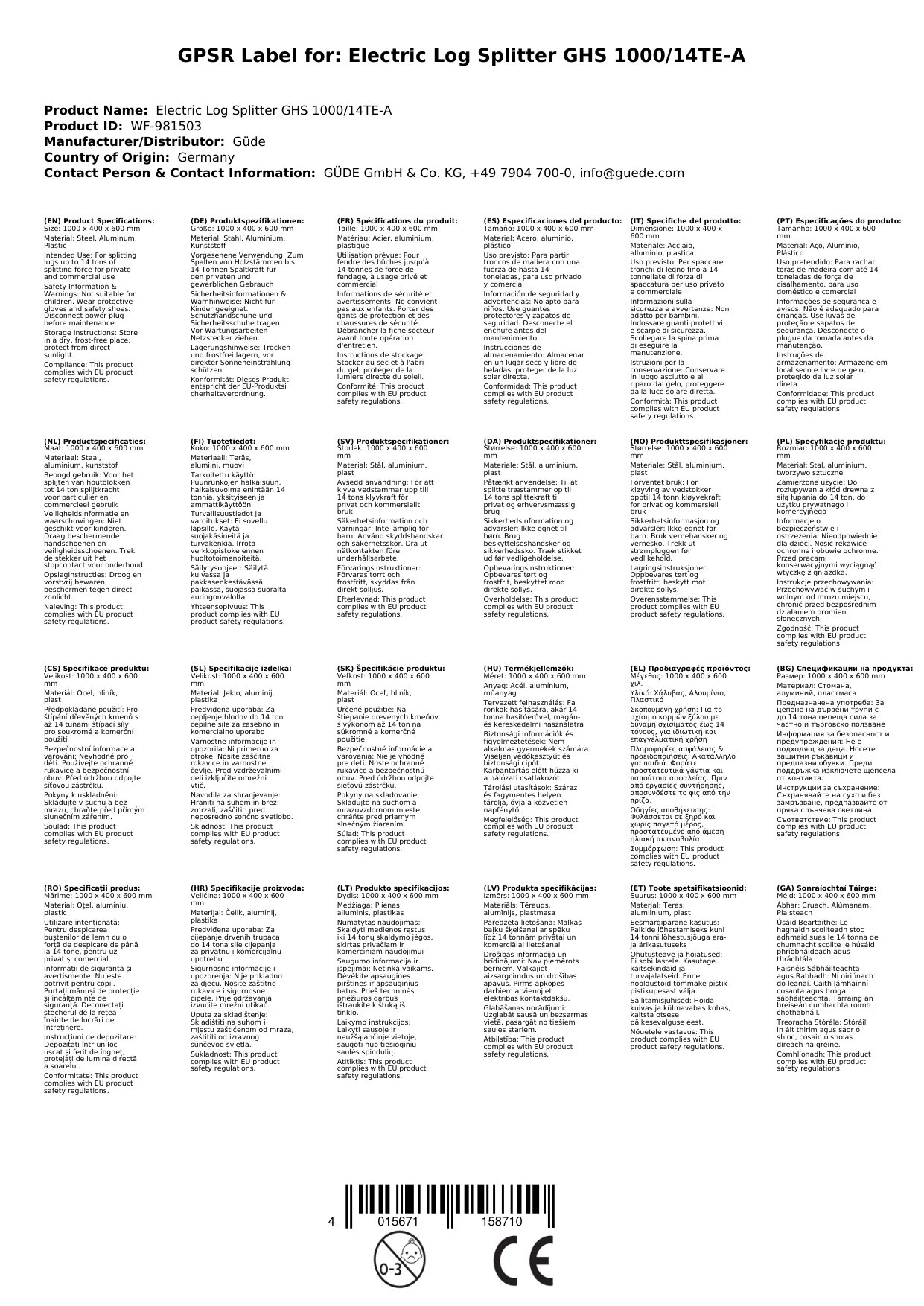

Pièce jointe GPSR :
Télécharger
