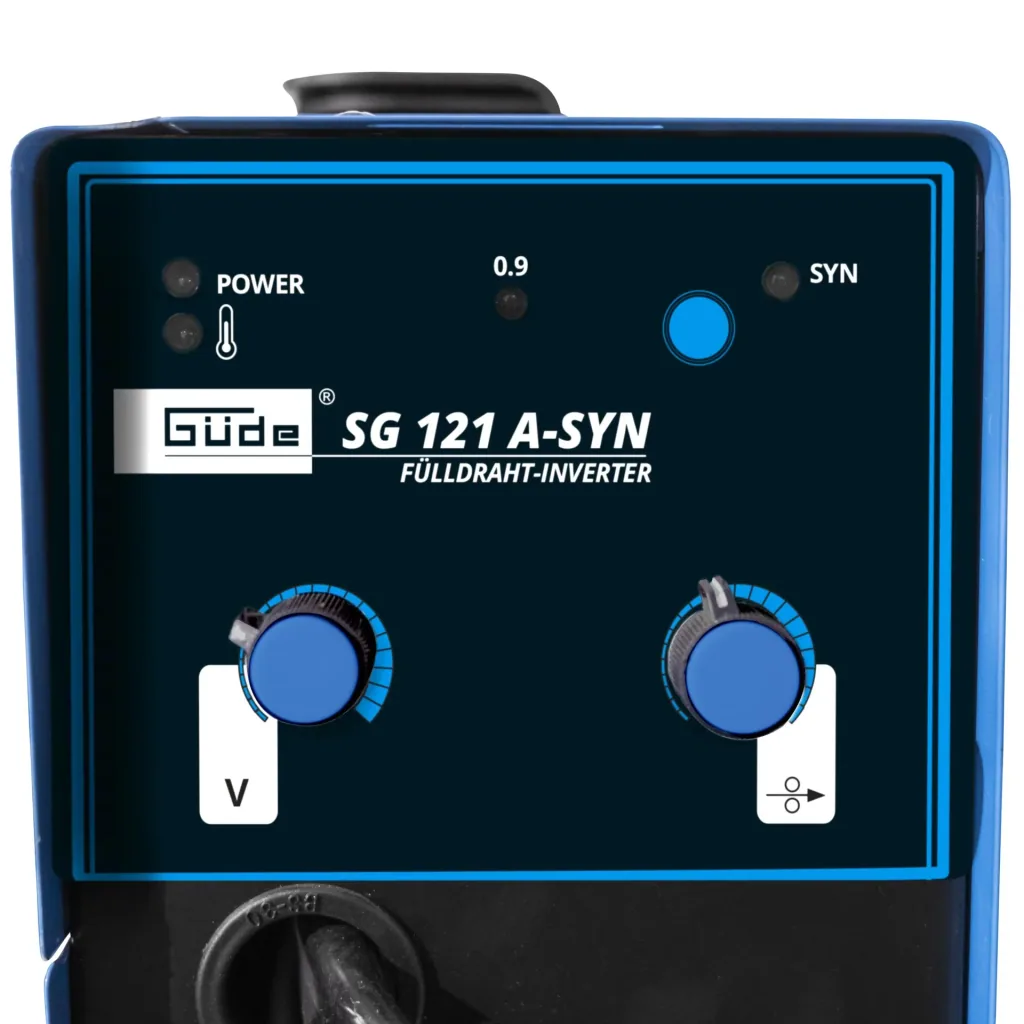

Flux-cored wire welding machine SG 121 A-SYN

• Cored wire inverter welder
• Synergic controlled wire feed guarantees the best welding results
• If required, the wire feed can also be set to manual
• For cored wires up to 0.9 mm (small spool)
• Continuously adjustable current (25-120 A)
• Housing made of powder-coated sheet steel
• Thermal overload protection
• Cooling fan with forced cooling
• ED at max. welding current 230V: 10%

Compact inverter welder with innovative cored wire technology. With IGBT for more power, less heat generation, higher efficiency, and lower noise. Simple and effective welding with special wire in which the shielding gas is enclosed in powdered form. With the new, innovative Synergic-controlled wire feed, the wire feed speed automatically adjusts to the optimal value. Alternatively, the wire feed speed can also be adjusted manually.

Ideal for occasional, smaller use in the workshop and on assembly, as no gas cylinder is required. For medium material thicknesses of 1.5-8 mm. Continuously adjustable from 25-120 amps. Also suitable for outdoor welding in windy conditions, as the shielding gas cannot be blown away. Immediately ready for use with connected hose package, earth clamp, including brush hammer, welding shield, 0.45 kg of 0.9 mm welding wire, 3 spare 0.9 mm nozzles, and a spare 0.9 mm feed roller. Can be easily secured to the sawhorse. After work, you can simply fold the sawhorse up and store it away to save space until the next time you need it.

Color: blue/black

Material: metal/plastic

Technical data

• Mains voltage: 230 V
• Frequency: 50 Hz
• Protection class (IP): 21 S
• Insulation class: H
• No-load power: 52 W
• Efficiency: 81%
• Max. mains power 230 V: 6 kVA
• Fuse, slow-blow: 16 A
• No-load voltage: 86 V
• Max. Welding current 230V: 120 A
• Welding current control range: 50-120 A
• Duty cycle at max. current 230V: 120 ~ 20 A ~ %
• Recommended material thickness: 2-6 mm
• Wire thickness (cored wire): 0.9 / max. 1 kg spool mm

Dimensions: approx. 330 x 140 x 240 mm

Weight: 6.5 kg

Scope of delivery

• Cored wire welding machine SG 121 A-SYN
• Hose package with direct connection
• Ground cable with ground clamp
• Brush hammer and welding shield
• Including cored wire (0.9 mm / 0.45 kg)
• Including replacement nozzles (3 x contact tip 0.9 mm)
• Including replacement feed roller (0.9 mm)
