Metal band saw MBS 180
Paiement 100% sécurisé
| Référence article | WF-972959 |
| Marque | Güde |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- Sturdy cast iron construction
- Ball-bearing 3-point saw blade guide
- Coolant system
- Chip brush
- Precisely adjustable lowering via hydraulic cylinder

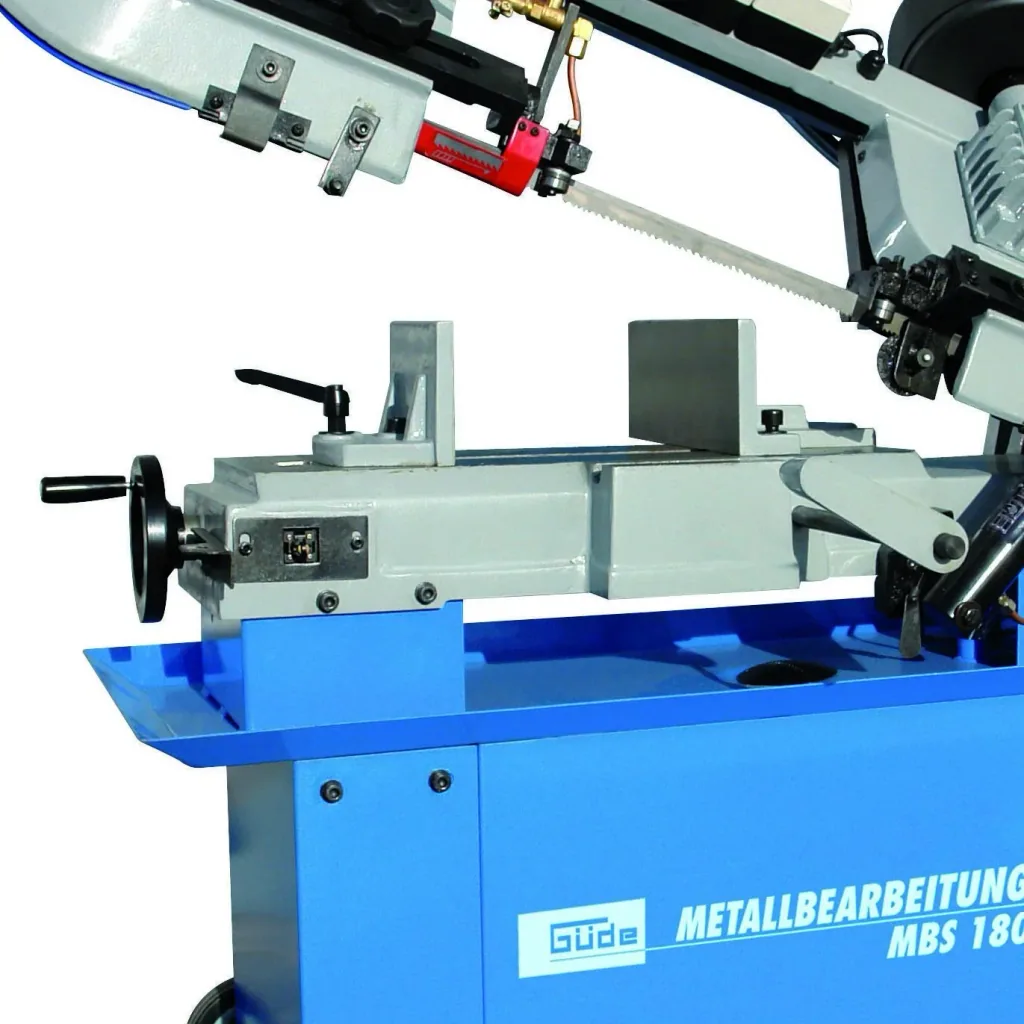

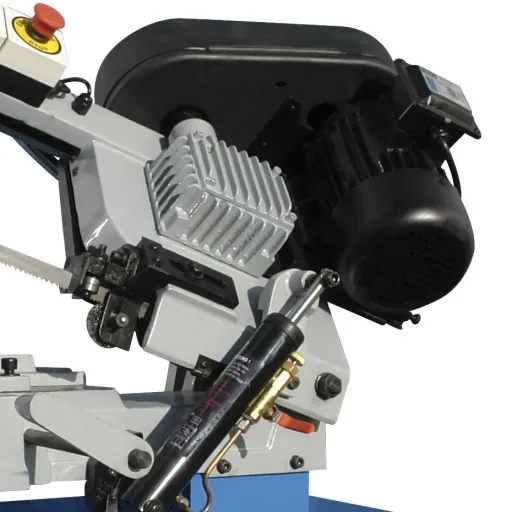

The MBS 180 metal band saw is a solid cast iron machine with a ball-bearing 3-point saw blade guide. The lowering of the saw arm with its high-quality bi-metal saw blade can be precisely adjusted via a hydraulic cylinder. The quick-action vice facilitates precise work, and the automatic limit switch ensures your safety.
Technical Specifications
- Mains voltage: 400 V
- Frequency: 50 Hz
- Protection class (IP): 44
- Motor power (P1): 750 W
- Cutting capacity, round at 90°: 178 mm
- Cutting capacity, round at 45°: 110 mm
- Cutting capacity, rectangular at 90°: 178 x 300 mm
- Cutting capacity, rectangular at 45°: 170 x 110 mm
- Belt speed: 22 / 34 / 45 / 64 m/min
- Noise level LWA: 80 dB
Dimensions
- 1,250 x 510 x 1,130 mm
- Width of the saw blade: 19.5 mm
- Length of the saw blade: 2,362 mm
- Thickness of the saw blade: 0.8 mm
Weight
- Net: 137 kg
- Gross: 176.6 kg
Scope of delivery: Metal band saw MBS 180
| Saw blade material | |
|---|---|
| Saw blade material | bi-metal |
| saw blade width | |
| saw blade width | 19.5 mm |
| power output | |
| power output | 750 W |
| colors | |
| colors | black |
| colors | blue |
| colors | silver |
| noise level | |
| noise level | 80 |
| weight | |
| weight | 176.6 kg |
| external dimensions | |
| external dimensions | 1250 x 510 x 1130 |
| cutting material | |
| cutting material | metal |
| voltage | |
| voltage | 400 V |
| IP protection class | |
| IP protection class | IP44 |
| saw blade length | |
| saw blade length | 2362 mm |
| blade thickness | |
| blade thickness | 0.8 mm |
