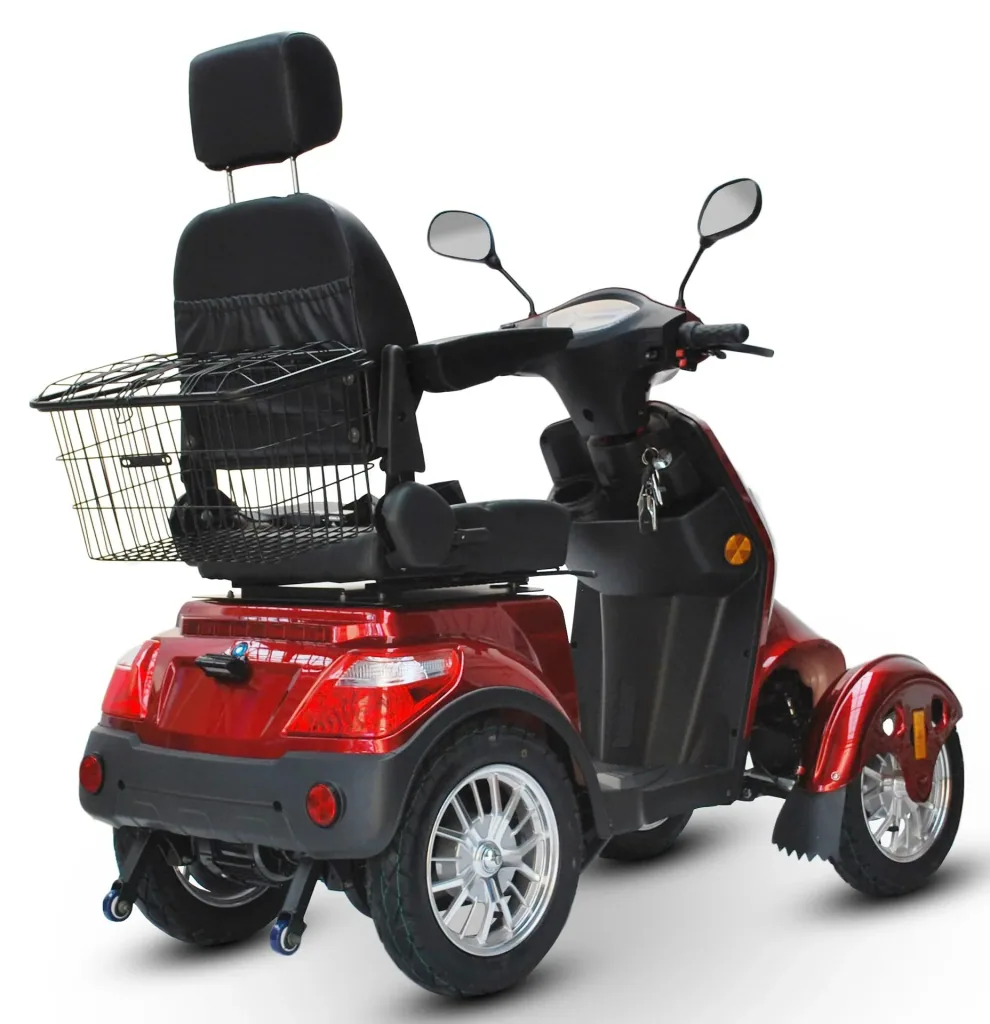

Electric vehicle - 4 wheels - Senior vehicle

• Equipped with electromagnetic brakes
• Powerful 500 W allows for tackling even steep inclines
• 3 speed levels: 6/15/25 km/h
• Seat is equipped with a headrest
• Small turning circle
• Safety belt included
• Includes a basket + additional storage space under the seat
• Approved as a moped and therefore roadworthy
• Vehicle is delivered pre-assembled
• With electromagnetic brakes

Technical specifications

• Model: ECO ENGEL 520
• Road legal: Yes
• Maximum load: 90 kg
• Brushless: Electric motor
• Motor power: 500 watts
• Charging time: 6-8 hours
• Charging voltage: 220 V
• Range: approx. 50 km depending on total weight, surface, and outside temperature
• Maximum speed: 25 km/h
• Battery: 60V / 20Ah lead-acid battery
• Brakes: front disc brakes, rear drum brakes
• Tires: pneumatic tires
• Headlight: parking, driving, high beam
• Taillight: included
• Immobilizer: included – steering wheel lock with alarm system
• Residual power indicator: available on the speedometer
• Light switch: available on the steering wheel
• Removable plug connections: yes
• Topcase: included
• Armrests: fold-up armrests
• Seat: adjustable
• Rearview mirror: included
• Speed ​​limiter: adjustable limiter on the steering wheel 25 km/h 15 km/h 6 km/h
• Parking brake: available
• Reverse gear: available, including warning tone
• Gradeability: 16%
• Electromagnetic brakes: Yes
• Turning circle: 3.8 m

Dimensions: 1600 x 700 x 1320 mm

Weight: 120 kg

Scope of delivery

• Eco Engel 520 + 5 lead batteries
• Including tip-over protection
• Charger
• Exterior mirrors
• Basket
• Operating instructions
• EEC EU road approval

Notes

1. Helmet requirement

For e-scooters with a maximum speed of 25 km/h, helmets are mandatory. Helmets are not required for vehicles under 25 km/h.

2. Insurance

Liability insurance is mandatory. With the EU type approval (EEC) included in the delivery, you only need to insure the e-scooter with an insurance company of your choice. Moped insurance is required for this. You will receive a moped license plate from the insurance company. Therefore, a separate registration with the registration office is not necessary.

3. Driver's license

A class AM moped driver's license is required for e-scooters. Persons born before April 1, 1965, are exempt from the driver's license requirement.
