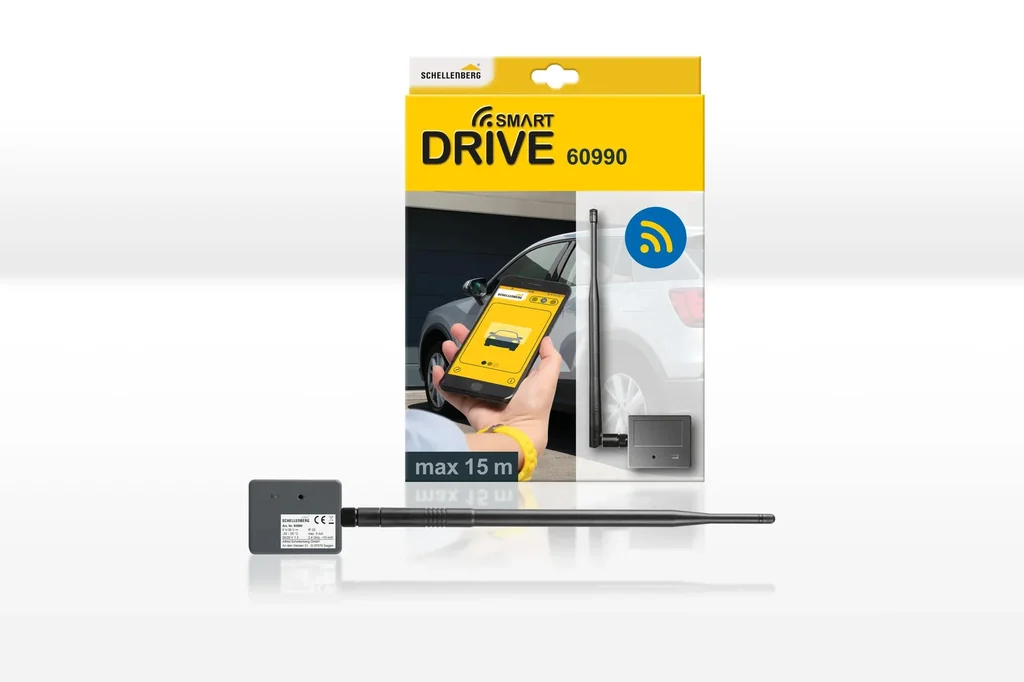

Smartphone garage door opener with LED

• Turns your smartphone into an additional handheld transmitter
• For garage door or external door openers from various manufacturers
• No modification of the door opener necessary
• Easy pairing of up to 5 smartphones, clear feedback via LED
• Scan-safe radio coding, no access for unauthorized persons

With the smartphone garage door opener, your smartphone becomes a handheld transmitter for garage and external door openers from various manufacturers. Using the radio module and a free app, you can conveniently open or close a garage or external door using your smartphone. The module is attached to the door opener and connected to the control system; no modification is necessary. The garage door opener is powered by the door opener. After installing the required smartphone app, up to 5 smartphones can be paired and used as handheld transmitters. The pairing process is simplified by an LED feedback light on the receiver module. The radio, with a frequency of 2.4 GHz and a range of up to 15 m, is coded to ensure scan security and cannot be intercepted by unauthorized persons.

The smartphone app is compatible with garage and external door openers from various manufacturers as well as with the following smartphones:

• Schellenberg garage and external door openers
• Hörmann garage door openers: Ecostar Liftronic 500 / 700 / 800
• Chamberlain garage door openers: ML510EV / ML700EV / ML1000EV
• Android: from operating system version 4.3
• iOS: from operating system version 7.1

Technical data

• Housing: 59 x 49 x 20 mm
• Cable: 4-color, 400 mm long, Connector
• Range: max. 15 m
• Operating voltage: 6 V-36 V DC
• Transmission power: max. 10 mW
• Current consumption: max. 5 mA DC
• Operating temperature: -10 to 55 °C
• Protection class: IP20, only for dry rooms
• Radio frequency: 2.4 GHz
• With LED feedback light: Yes

Scope of delivery

• 1 x radio receiver module
• 1 x antenna
• 1 x connection cable
• 2 x double-sided adhesive tape
• 1 x app (free download)
• 1 x assembly instructions
