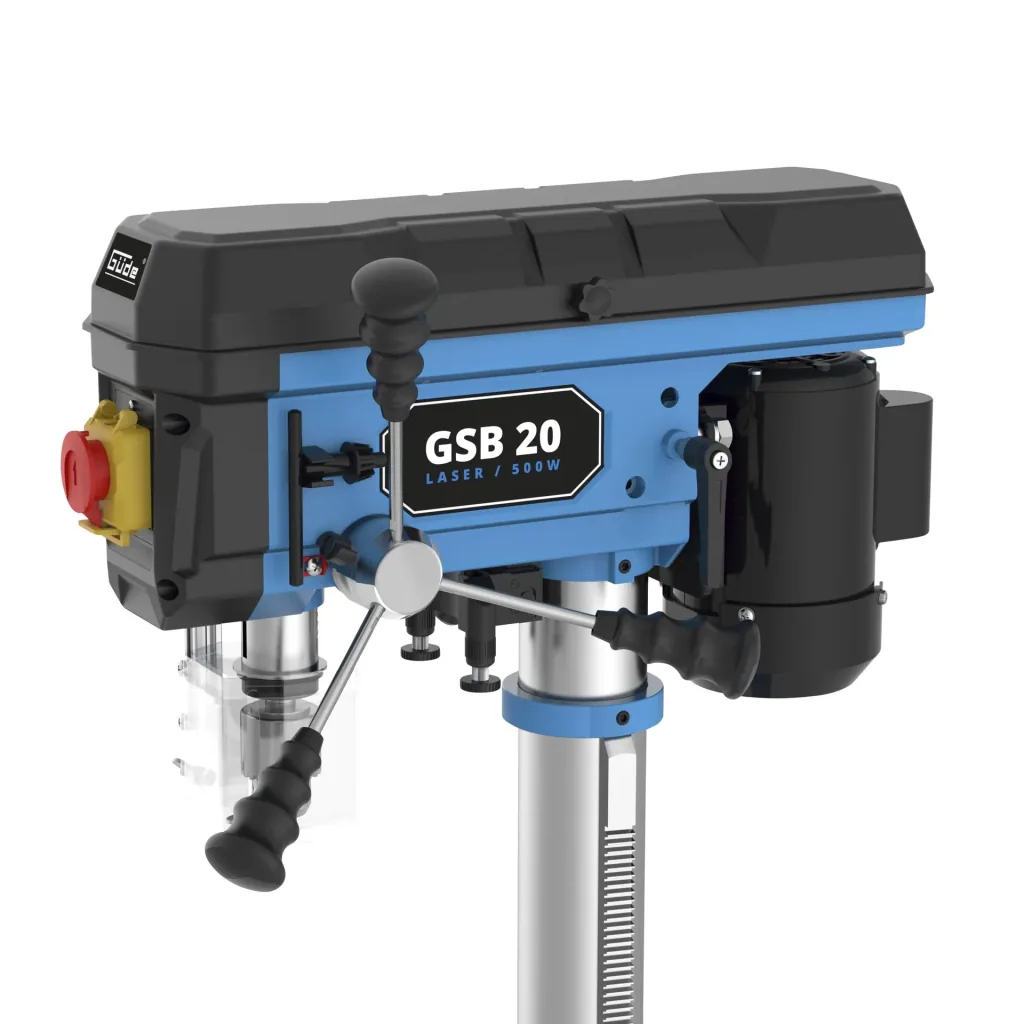

Perceuse sur colonne GSB 20 LASER/500 W
Paiement 100% sécurisé
| Référence article | WF-953021 |
| Marque | Güde |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- V-belt drive, speed adjustment via stepped pulley
- V-belt tensioning system
- Ball-bearing drill spindle
- Drill chuck cone B16
- Drill table size 210 x 210 mm
- Drill table height adjustable, tiltable +/- 45°
- Drill table with collecting troughs for coolant
- Adjustable drilling depth stop for precise drilling
- Max. distance between drill chuck and drill table 590 mm
- Max. Distance between drill chuck and base: 1200 mm
- Base size: 300 x 435 mm with slots for vice attachment
- Foldable chip guard with microswitch
- On/off switch with zero-voltage release
- Emergency stop switch
- Position laser for precise drilling results
Technical data:
- Mains voltage: 400 V
- Frequency: 400 V 50 Hz
- Operating mode: S2 15min
- Protection class: I
- Engine performance P1: 500 watts
- Spindle stroke: 50 mm
- Spindle speed: 500-2600 min-1
- Number of stages: 5
- Outreach: 140 mm
- max. Drill chuck span: 16 mm
- min. Drill chuck span: 3 mm
- Drill chuck cone: 16 B
- Drilling diameter for steel: 16 mm
- Table: 210 x 210 mm
- Footplate W x D: 300 x 435 mm
- Diameter of the column: 70 mm
- Length of the connection cable: 200 cm
- Noise value LWA: 71 dB
Dimensions L x W x H: 540 x 350 x 1450 mm
Weight: 26.64 kg
| External dimensions | |
|---|---|
| External dimensions | 540 x 350 x 1450 |
| Table size | |
| Table size | 210 x 210 mm |
| Projection | |
| Projection | 145 mm |
| Drill chuck type | |
| Drill chuck type | Keyed chuck |
| Number of gears | |
| Number of gears | 5 |
| Noise level | |
| Noise level | 86 |
| Drive | |
| Drive | Manual |
| Drive | 230V motor |
| Protection class | |
| Protection class | I |
| Weight | |
| Weight | 26.644 kg |
| Power output | |
| Power output | 500 W |
| Drill chuck width | |
| Drill chuck width | 16 mm |
| No-load speed | |
| No-load speed | 2600 rpm |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| IP protection class | |
| IP protection class | IPX0 |
| Spindle mount | |
| Spindle mount | 2 MK |
Nom du responsable UE : GÜDE GmbH & Co. KG
Rue du responsable UE: Birkichstrasse
N° de maison du responsable UE : 6
Code postal du responsable UE: 74549
Commune responsable de l'UE: Wolpertshausen
Pays de l'UE responsable : Germany
E-mail du responsable UE: [email protected]
Numéro de téléphone du responsable UE: +49 7904 700-0

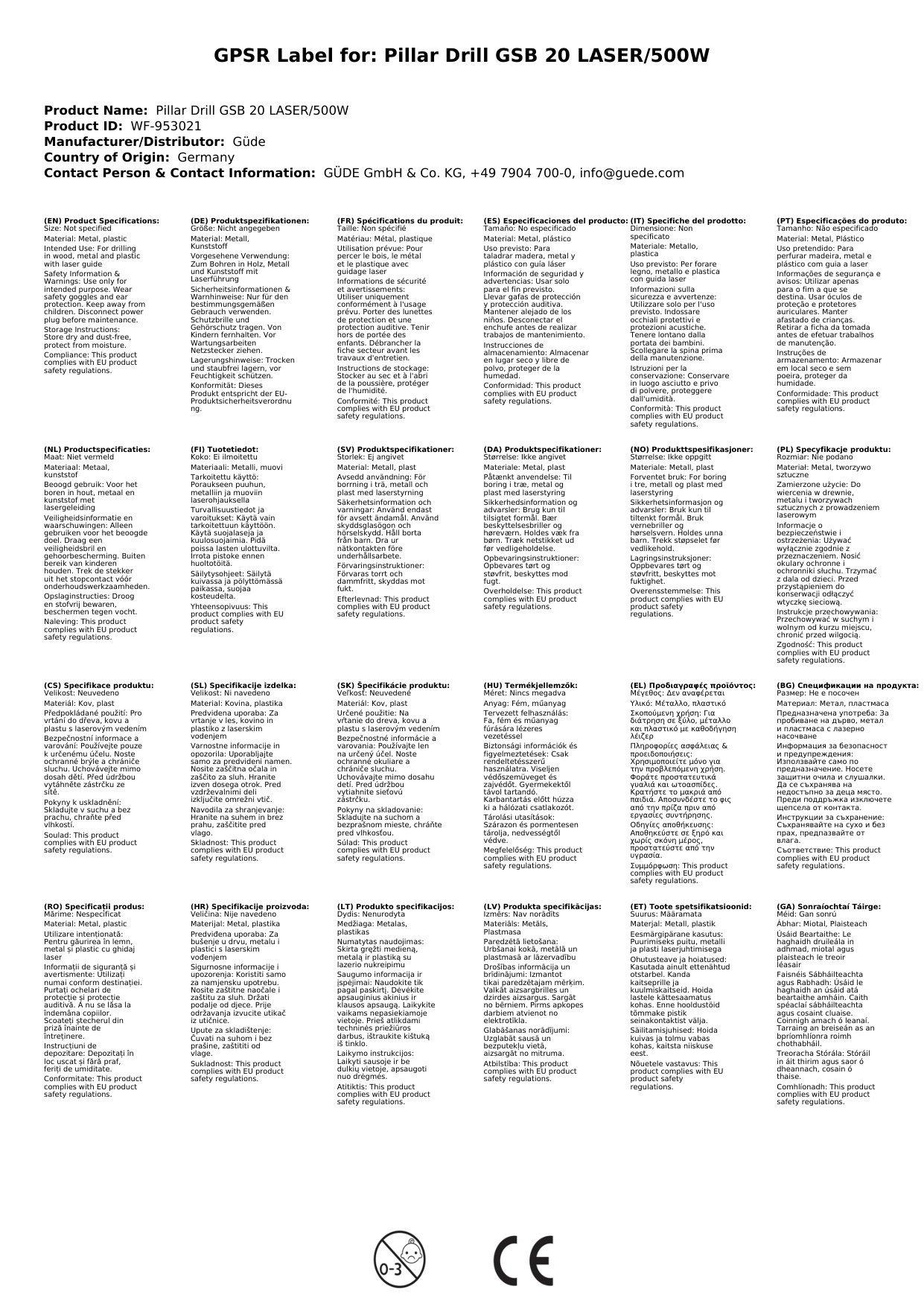

Pièce jointe GPSR :
Télécharger
