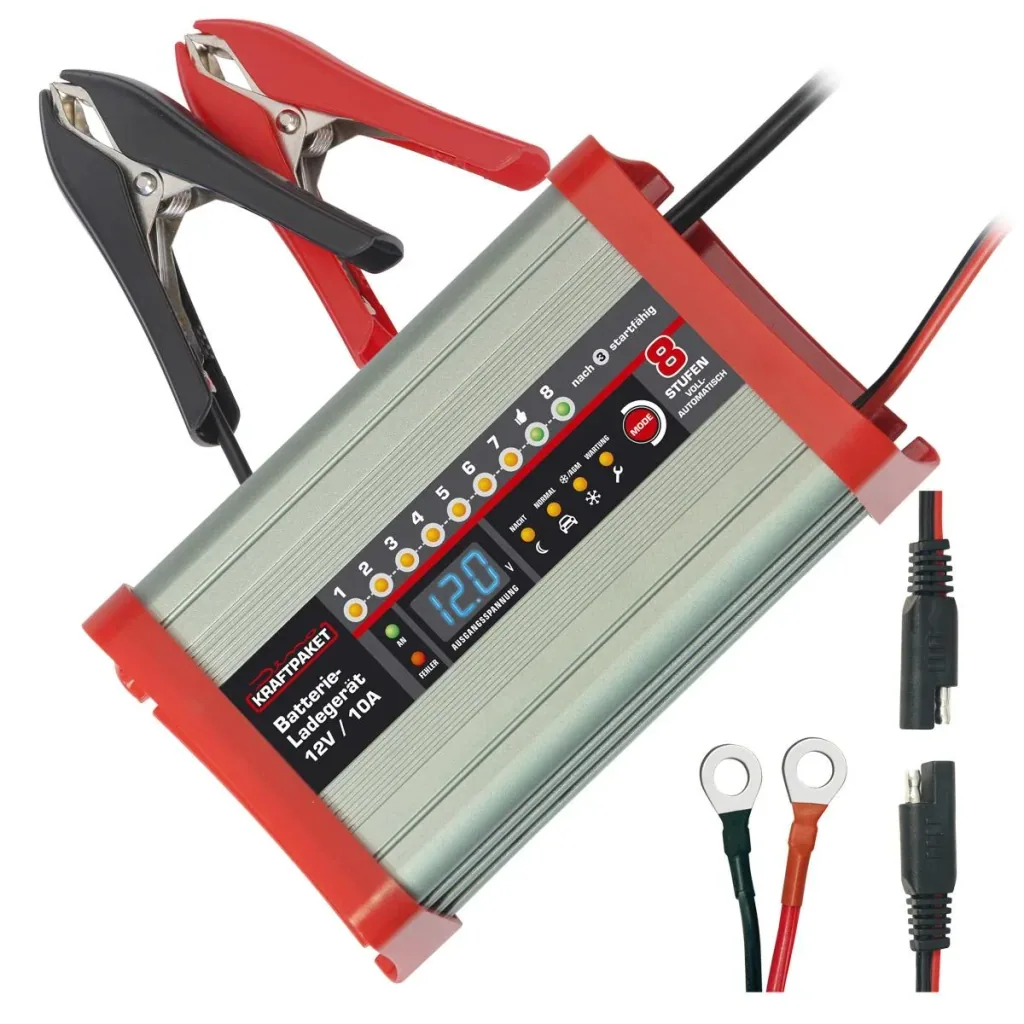

Battery charger 12 Volt – 10 A with camping function

• Fast charge function
• Camping function
• Night mode
• Memory storage
• Starting ability indicator
• Suitable for continuous charging

Fully automatic 8-step battery charger with 10A charging current.

The car battery charger is an 8-step vehicle battery charger that is suitable for charging and maintenance charging of 12 volt lead-acid batteries (batteries) with liquid electrolyte (WET), maintenance-free lead-acid batteries (MF), gel electrolyte (GEL) or electrolyte-absorbing mats (AGM).

Select the desired charging program (Normal, AGM, Frost, Maintenance or Night) and the microprocessor-controlled car battery charger handles everything fully automatically until the charging cycle is completed and Maintenance charging of full batteries. The German-language display is easy to understand and convenient to use.

Suitable for continuous charging:

For continuous charging, the ring-eyelet cables are permanently attached to the vehicle battery to be charged.

The vehicle battery charger is connected to the ring-eyelet cable via a quick-connect plug. This is very practical, as the ring-eyelet cables can remain permanently connected to the battery.

Fast charging:

The battery charger enables a maximum rapid charging current of 10 amps up to 85% charge. Therefore, charging takes much less time than with a conventional charger with a 10A nominal current, which, due to its design, has a declining charging current.

Camping function:

As soon as power is drawn from the vehicle battery with the engine off, recharging begins according to the program. Permanent installation in the vehicle electrical system is possible.

Night mode:

Quiet charging thanks to reduced charging power with reduced fan function.

Memory:

After an interruption in the mains power supply, the automatic battery charger starts in the last program used when the power is reconnected.

Startability indicator:

The vehicle is startable again after charging step 3. The message appears on the display.

Modern safety technology:

Reverse polarity protection, overheating protection, overload protection, and short-circuit protection protect you and the device from incorrect operation.

Four charging programs:

Maintenance up to 16 volts

This function increases performance and extends the life of the battery.

Night up to 14.4 volts

Quiet charging due to reduced charging power with reduced fan function.

Normal up to 14.4 volts: For all 12V lead-acid batteries (except AGM)

AGM / Frost up to 14.7 volts: Frost and AGM function for an adapted charging process at low temperatures or for AGM batteries.

Eight charging steps:

STEP 1 "PREPARATION" BREAKING DOWN THE SULPHATION

Detects batteries affected by sulfate deposits and removes these deposits using pulsating current and voltage to restore optimal charging capacity.

STEP 2 "SOFT-START"

Tests the battery for charging capacity and only starts the charging process with 50% charging current until approx. 12.5V is reached if the result is positive. This prevents damage to the battery and the charger.

STEP 3 "FAST CHARGING" FAST CHARGING PROCESS UP TO 85%

After a successful test, the device charges the battery with maximum current until it reaches 14.4V (in the "Cold/AGM" program it is 14.7V selected with the "MODE" button) to a charge level of approximately 85%. In an emergency, a discharged battery is sufficiently charged after charging step 3 to start an engine again, even in cold weather.

STEP 4 "RESIDUAL CHARGE" CHARGING PROCESS UP TO 95%

Device charges with decreasing current at constant voltage up to a charge of 95%.

STEP 5 CAPACITY TEST

Tests the battery for charge retention for 3 minutes. The device evaluates whether the battery can maintain the voltage.

STEP 6 "MAINTENANCE" REFRESH FUNCTION 100% (PRESS "MODE" BUTTON BEFORE STARTING)

The "Maintenance" function releases the battery acid in a controlled manner at 16 volts and up to 3 A. This achieves full charge and increases the battery's service life and performance.

STEP 7 "MAINTAIN" TREAT CHARGE (100%)

Charge maintenance at a constant battery voltage of 13.7 volts with a low charging current. If the "Maintenance" charging program has not been selected, 100% of the charge is achieved in this charging step. The vehicle battery charger operates as a maintenance charger from step 7 onwards.

STEP 8 "PULSE" PULSE CHARGING (95-100%)

After 10 days and/or when the voltage drops below 95%, 100% of the charge is restored with charging pulses, preventing sulfation.

Technical Data

• Battery voltage: 12 volts
• Operating voltage: 230 volts
• Battery capacity at 12 volts: 36 - 200 Ah
• Suitable for: AGM + lead-calcium + lead-gel + lead-acid + lead-fleece.
• Charging current at 12 volts: 10 A
• Max. reverse current: 0.004 A
• Protection class: Control element splash-proof + IPX0

Dimensions (L x W x H): 115 x 61 x 196 mm

Weight: 1.1 kg

Scope of delivery

• Battery charger 10A (8 levels, fully automatic)
• Charging cable with battery terminals (pliers) and comfort plug
• Charging cable with eyelets (M8) and comfort plug
• Illustrated instructions for use
