Bending machine with bending beam, degree scale and guillotine shears
| Référence article | WF-922822 |
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choixIl n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
The craftsman's folding machine is designed for use by craftsmen and do-it-yourselfers.
With reinforced bending beam, degree scale, and special bracket for the bending beam.
Simple and quick assembly by clamping in a vice or attaching without a vice to the workbench.
Easy removal, even of closed workpieces. Multiple bending operations are possible without removing the workpiece.
Technical Data
• Working width 1000 mm
• Reinforced bending beam
• Max. bending angle 135°
• Bending operations: Only for galvanized sheet steel up to max. 0.6 mm
• Weight: 35 KG
Delivered without vice.

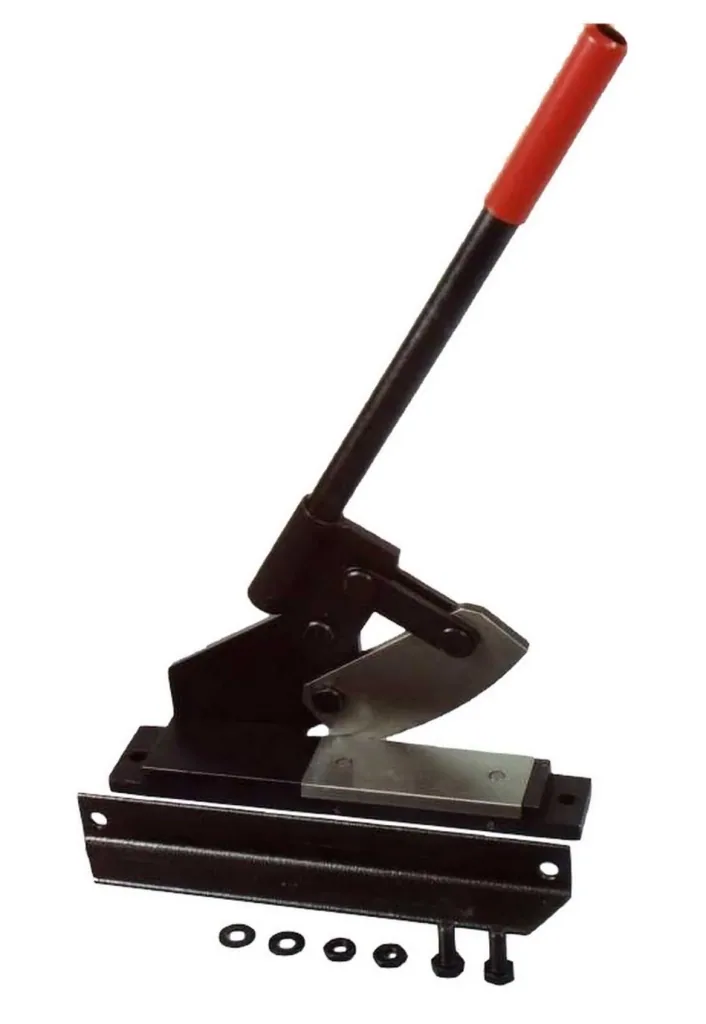

Guiding shears
• For quick work, clamp in a vice or mount firmly on a workbench.
• Cuts sheet steel up to 1.5 mm and zinc, copper, and aluminum sheets up to 2.0 mm and stainless steel up to 1.0 mm.
• Blade length 140 mm
• Allows easy sheet passage while working.
• Weight: 6.5 kg
| Working width | |
|---|---|
| Working width | 1,000 mm |
| Maximum bending angle | |
| Maximum bending angle | 135° |
| External dimensions | |
| External dimensions | 1,160 x 280 x 120 |
| Weight | |
| Weight | 35 kg |
