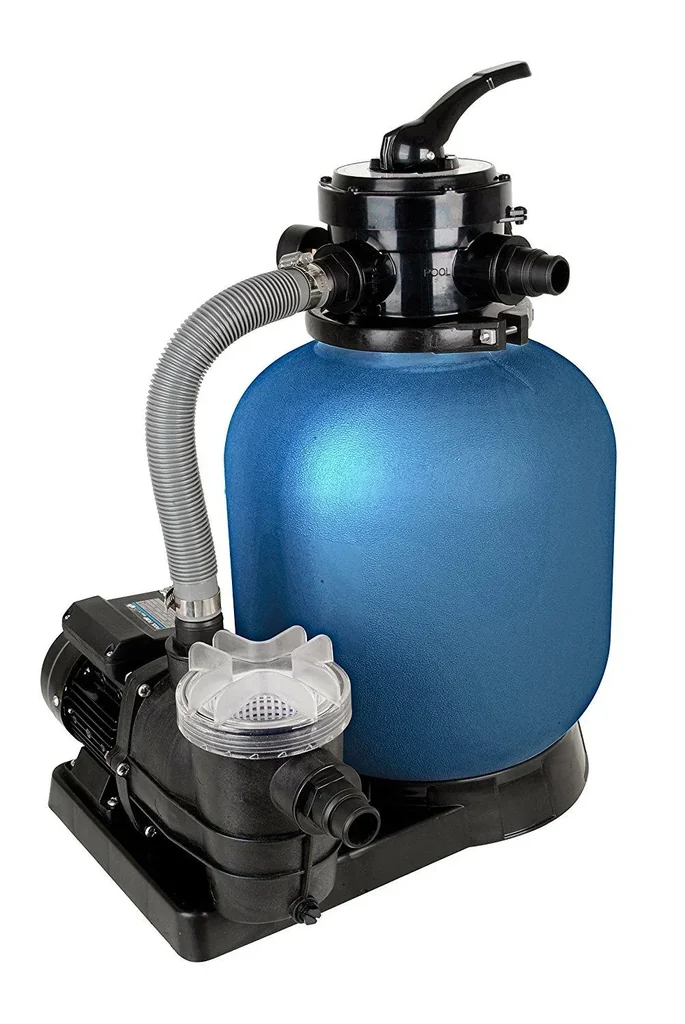

Swimming pool filter set sand filter system SPF 370 F, up to 7,000 l/h
Paiement 100% sécurisé
| Référence article | WF-912203 |
| Marque | T.I.P. |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- 4-way valve for convenient operation and cleaning of the filter
- Winter mode for longer periods of non-use
- Very simple installation and commissioning
- Ideally suited for smaller swimming pools
- TÜV Rheinland certified / GS safety tested
- Including integrated pre-filter
The swimming pool filter set consists of a pump with pre-filter and a sand filter with the following functions: filtering, backwashing (cleaning the filter), rinsing (removing suspended matter in the sand), winter mode (to relieve the pressure on the seals). Operation is via a four-way valve. The filter set is equipped with a pressure gauge. The recommended operating time is 10 to 11 hours per day. The set ensures water clarity in the swimming pool with efficient energy use and is quick and easy to install. The necessary hose connections are included. Cleaning the sand filter is straightforward thanks to the four-way valve. Quartz sand is not included in delivery.
Technical Specifications
- Power P1: 550 watts
- Power P2: 370 watts
- Sand filter flow rate: 7,000 l/h (7.0 m³/h)
- Maximum flow rate: 13,200 l/h (13.2 m³/h)
- Maximum pressure: 1.2 bar
- Maximum medium temperature: 40 °C
- Min. medium temperature: 5 °C
- Quartz sand grain size: 0.5 - 0.8 / 0.7 - 1.2 mm
- Threaded connection: 45.48 mm (1½" female thread)
- Hose connection: 32 mm (1¼"), 38 mm (1½")
- 4-way valve
- Dimensions of the filter set: 50 x 50 x 68 cm
- Sand filling quantity: 25 kg
- Location: approx. 2-3 m from the pool edge
- Recommended pool size: 40 m³
Dimensions
- Width: 64.0 cm
- Depth: 40.0 m
- Height: 51.0 cm
Weight: 14.0 kg
