Pompe d'aspiration plate GFS 401 S
Paiement 100% sécurisé
| Référence article | WF-890834 |
| Marque | Güde |
Avis
Il n'y a pas encore d'avis — le vôtre pourrait être le premier
Partagez votre expérience avec cette achat et aidez d'autres clients à faire le bon choix
Questions
Il n'y a pas encore de questions
Poser une question pour en savoir plus sur le produit
0.0
0 reviews
- Variably adjustable float switch
- Housing made of impact-resistant plastic
- Impeller made of Noryl
- Mechanical seal
- 10 m connection cable
- Carrying handle
- Thermal protection
- Min. switch-on height 30 mm
- Integrated check valve

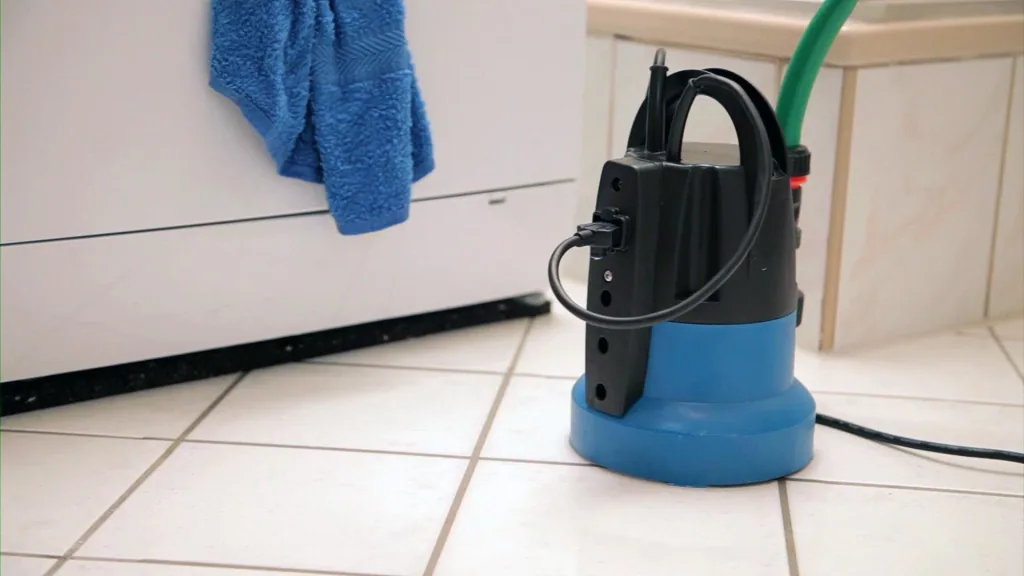

This submersible pump is ideal for draining flat surfaces until they are wipe-dry. For pumping from containers or cisterns. The sensor automatic switch-off allows different suction heights to be selected.
Automatic switch-off via integrated electronic control
Sensor switch can be fixed in 3 positions and for continuous operation
Technical data
- Mains voltage: 230 Volt
- Frequency: 50 Hz
- Motor power (P1): 400
- Protection class (IP): X8
- Delivery volume: 7000 l/h
- Max. delivery head: 8 m
- Max. immersion depth: 7 m
- Max. grain size: 1 mm
- Max. suction: 1 mm
- Max. Water temperature: 35 °C
- Connection thread: IG 1 1/2 "
- Length of the connection cable: 1000 cm
Dimensions L x W x H: 280 x 280 x 200 mm
Weight: 4.3 kg
| Weight | |
|---|---|
| Weight | 4.3 kg |
| Flow rate | |
| Flow rate | 7,000 l/min |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 10 m |
| Output power | |
| Output power | 400 W |
| Material | |
| Material | Plastic |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Float switch |
| Technical features | Thermal protection switch |
| External dimensions | |
| External dimensions | 280 x 280 x 200 mm x mm x mm |
| Switching point on | |
| Switching point on | 30 mm |
| Connection size | |
| Connection size | 1 1/2 |
| Solids size | |
| Solids size | 1 mm |
| Delivery head | |
| Delivery head | 8 m |
| Frequency | |
| Frequency | 50 |
| Max. immersion depth | |
| Max. immersion depth | 7 m |
Nom du responsable UE : GÜDE GmbH & Co. KG
Rue du responsable UE: Birkichstrasse
N° de maison du responsable UE : 6
Code postal du responsable UE: 74549
Commune responsable de l'UE: Wolpertshausen
Pays de l'UE responsable : Germany
E-mail du responsable UE: [email protected]
Numéro de téléphone du responsable UE: +49 7904 700-0

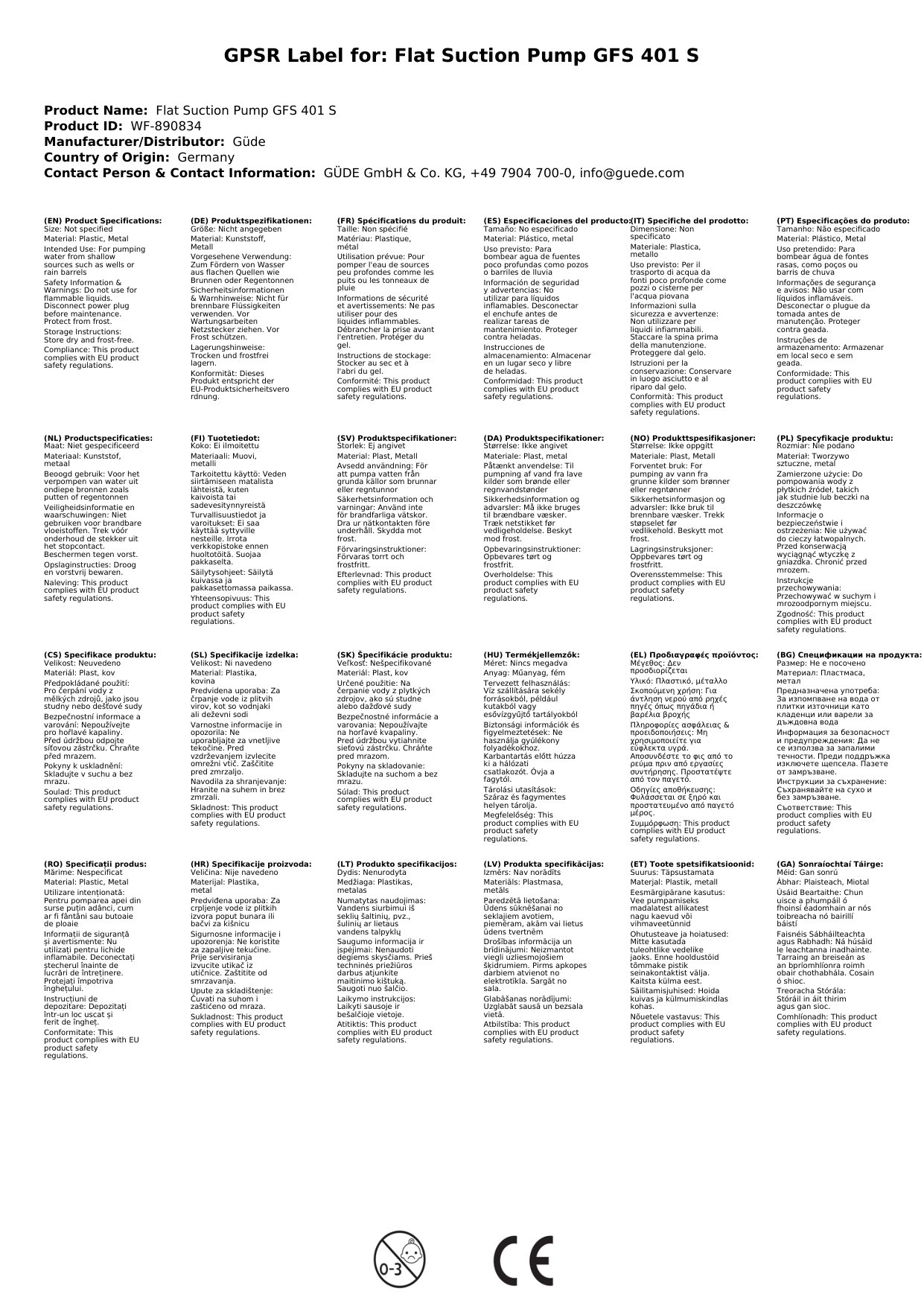

Pièce jointe GPSR :
