Pompe submersible pour eaux usées "DRAIN 20000 HD"

The extremely powerful, compact and reliable AL-KO DRAIN 20000 HD submersible dirty water pump in stainless steel design effortlessly pumps away even water with dirt and suspended particles up to an extreme grain size of 38 mm thanks to its large suction opening.

• Top model: Dirty water pump with 1,300 watts of power
• Special impeller technology for extreme requirements
• Universal angle connection and combination nipple included
• Optimal corrosion protection and stainless steel design ensure a long service life
• Grain sizes up to 38 mm, max. flow rate 20,000 l/h, up to 10 m delivery head

Dirty water pumps are used when heavily contaminated liquids need to be removed, e.g. This can be particularly useful in applications such as after severe flooding, in polluted ponds or cisterns, or when draining excavations. Then they have to move not only water but also dirt particles. This significantly increases the strain on the material and the motor's performance.

It's good if it's an AL-KO pump. Thanks to the special vortex impeller geometry, the top-of-the-line DRAIN 20000 HD model effortlessly handles even heavily contaminated water with up to 5 percent suspended debris and grain sizes up to 38 mm. The stable and robust construction with a 4-way seal kit, the use of corrosion-free materials, the maintenance-free motor, and the specially treated stainless steel motor shaft guarantee a long service life for this AL-KO dirty water pump. In addition, thanks to the chrome-nickel steel pump housing and chrome-nickel steel motor shafts, it is permanently protected against rust.

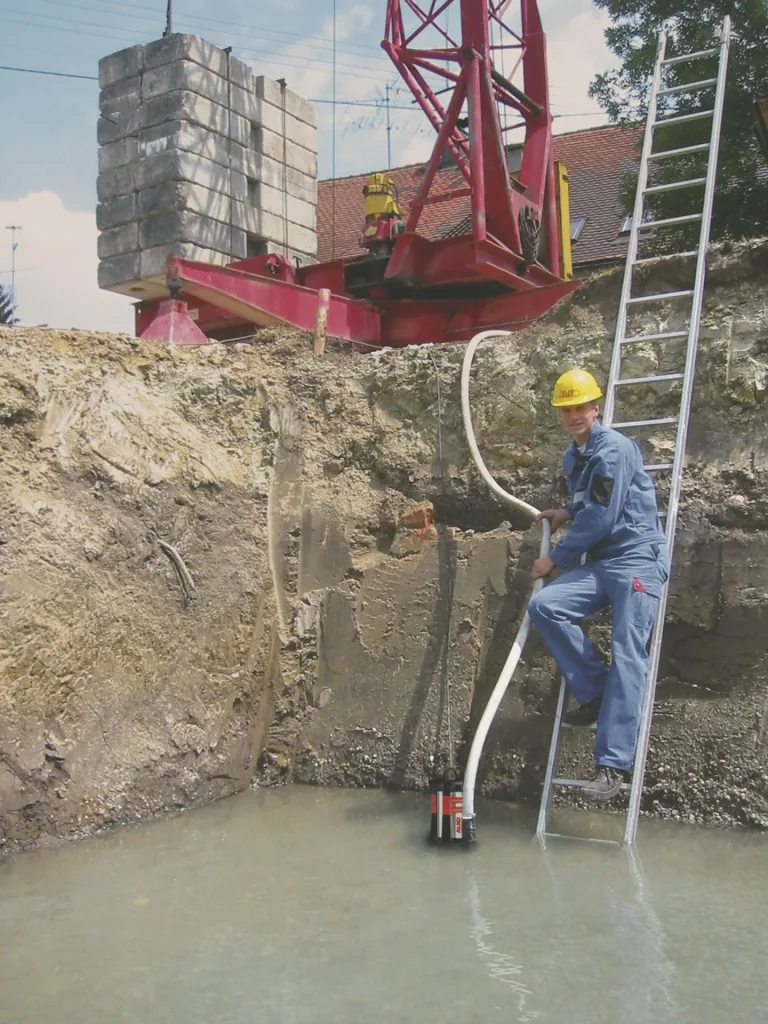

Thanks to the practical integrated carrying handle and 10 m long power cable, as well as its weight of only around 8 kg, the dirty water pump can be used mobile or stationary for drainage – including clear water, of course. Its compact dimensions of 23.20 x 23.20 x 37.40 cm, the rust-proof housing, and the durable pump motor also make it ideal as a pond pump. It is also excellent for pumping out excavations and drainage basins. It also impresses with its stable and robust construction thanks to its multiple seal kit with an additional V-seal. The AL-KO DRAIN 20000 HD submersible pump can easily handle even coarser dirt in the water thanks to the extra-large suction openings. Both clear and dirty liquids with a grain size of up to 38 mm are pumped out quickly and safely.

The specially treated motor shaft, made of durable stainless steel, and the chrome-nickel steel housing ensure a long service life for this practical helper. With its powerful 1,300 W output and a flow rate of up to 20,000 l/h, emptying and transferring is completed in no time. The AL-KO DRAIN 20000 HD submersible pump is equipped with a float switch and starts the pumping process automatically thanks to the automatic level control. It is designed for immersion depths of up to 7 m. The discharge head of up to 10 m makes even great depths easy to manage. The pump outlet measures 2.0 inches, which corresponds to approximately 59.6 mm. The 90° angle connection features a universal connector, and the included combination nipple allows for connection to all standard hose sizes.

Note: The submersible pump is not suitable for drinking water, but only for domestic water below 35°C. It is also not suitable for use in salt water, water with aggressive chemicals, or water containing sand.

Technical Specifications

• Drive: 230V motor
• Voltage: 230 volts
• Power: 1300 watts
• Protection class: IPX8
• Cable length: 10 m
• Connection size: 2 inches
• Connection size (metric): 59.61 mm
• Min. immersion depth: 30 mm
• Max. immersion depth: 7 m
• Delivery head: 10 m

Scope of delivery: 1 x "DRAIN 20000 HD" submersible dirty water pump
